ASTM A403 - standard specification for wrought austenitic stainless steel piping fittings |

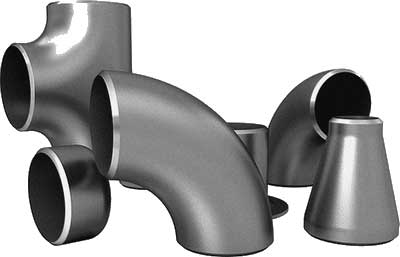

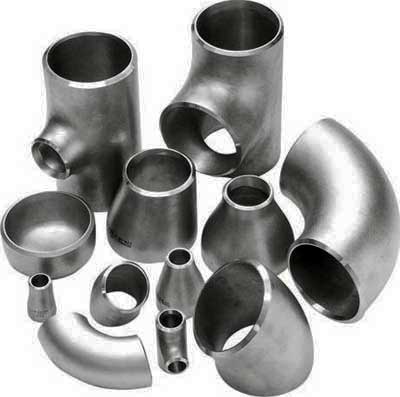

ASTM A403 is a globally recognized standard for austenitic stainless steel pipe fittings, including elbows, tees, reducers etc.
ASTM A403 fittings are designed for pressure piping and other high-performance systems, offering excellent strength, durability and corrosion resistance.
The ASTM A403 standard specifies key properties such as chemical composition, mechanical performance and heat treatment requirements to ensure reliable performance as in industries such as oil and gas, chemical processing and food production.
Commonly used ASTM piping materials
| Forgings | |||||
| UNS no. | Fittings | Pipes | Flanges | Valves | Bolts Nuts |
| S30400 | WP304 | A312 Gr.TP304 | A182 Gr.F304 | A193 Gr.B8 A194 Gr.8 |
|
| S30403 | WP304L | A312 Gr.TP304L | A182 Gr.F304L | ||
| S30409 | WP304H | A312 Gr.TP304H | A182 Gr.F304H | ||
| S30900 | WP309 | A312 Gr.TP309 | A182 Gr.F309 | ||
| S31600 | WP316 | A312 Gr.TP316 | A182 Gr.F316 | ||
| S31603 | WP316L | A312 Gr.TP316L | A182 Gr.F316L | ||
| S31609 | WP316H | A312 Gr.TP316H | A182 Gr.F316H | ||
| S32100 | WP321 | A312 Gr.TP321 | A182 Gr.F321 | ||
| S32109 | WP321H | A312 Gr.TP321H | A182 Gr.F321H | ||
| S34700 | WP347 | A312 Gr.TP347 | A182 Gr.F347 | ||
| S34709 | WP347H | A312 Gr.TP347H | A182 Gr.F347H | ||
Chemical Requirements
| Chemical Composition (%) | |||||||
| Steel Grade |
UNS Designation |
C | Mn | P | Ni | Cr | Mo |
| WP304 | S30400 | 0,08 | 2.0 | 0,045 | 8.0-11.0 | 18.0-20.0 | - |
| WP304L | S30403 | 0.030 | 2.0 | 0,045 | 8.0-12.0 | 18.0-20.0 | - |
| WP304H | S30409 | 0.04-0.10 | 2.0 | 0,045 | 8.0-11.0 | 18.0-20.0 | - |
| WP309 | S30900 | 0,2 | 2.0 | 0,045 | 12.0-15.0 | 22.0-24.0 | - |
| WP316 | S31600 | 0,08 | 2.0 | 0,045 | 10.0-14.0 | 16.0-18.0 | 2.00-3.00 |
| WP316L | S31603 | 0.030 | 2.0 | 0,045 | 10.0-14.0 | 16.0-18.0 | 2.00-3.00 |
| WP316H | S31609 | 0.04-0.10 | 2.0 | 0,045 | 10.0-14.0 | 16.0-18.0 | 2.00-3.00 |
| WP321 | S32100 | 0.08 | 2.0 | 0,045 | 9.0-12.0 | 17.0-19.0 | - |
| WP321H | S32109 | 0.04-0.10 | 2.0 | 0,045 | 9.0-12.0 | 17.0-19.0 | - |
| WP347 | S34700 | 0.08 | 2.0 | 0,045 | 9.0-12.0 | 17.0-19.0 | - |
| WP347H | S34709 | 0.04-0.10 | 2.0 | 0,045 | 9.0-12.0 | 17.0-19.0 | - |
Tensile Requirements
| Steel Grade |
Mechanical Properties | ||
| Tensile Strength min. | Yield Strengh (MPa) | Elongation (%) | |
| WP304 | 515 | 205 | 28 |
| WP304L | 485 | 170 | 28 |
| WP304H | 515 | 205 | 28 |
| WP309 | 515 | 205 | 28 |
| WP316 | 515 | 205 | 28 |
| WP316L | 485 | 170 | 28 |
| WP316H | 515 | 205 | 28 |
| WP321 | 515 | 205 | 28 |
| WP321H | 515 | 205 | 28 |
| WP347 | 515 | 205 | 28 |
| WP347H | 515 | 205 | 28 |
Heat Treatment
All fittings shall be supplied in a heat-treated condition. Separate heat treatments are required for H grades in terms of solution annealing. In-process heat treatments are not permitted to replace the separate heat treatments.
Referenced Documents
ASTM Standards
- ASTM A351 Specification for Castings, Austenitic, forPressure-Containing Parts
- ASTM A743 Specification for Castings, Iron-Chromium, Iron-Chromium-Nickel, Corrosion Resistant, for General Application
- ASTM A744 Specification for Castings, Iron-Chromium-Nickel, Corrosion Resistant, for Severe Service
- ASTM A751 Test Methods, Practices, and Terminology for Chemical Analysis of Steel Products
- ASTM A960 Specification for Common Requirements for Wrought Steel Piping Fittings
- E112 Test Methods for Determining Average Grain Size
- E165 Practice for Liquid Penetrant Examination for General Industry
ASME Standards
- ASME B16.9 Factory-Made Wrought Steel Butt-Welding Fittings
- ASME B16.11 Forged Steel Fittings, Socket-Welding and Threaded
MSS Standards
- MSS SP-25 Standard Marking System for Valves, Fittings, Flanges, and Unions
- MSS SP-43 Standard Practice for Light Weight Stainless Steel Butt-Welding Fittings
- MSS SP-79 Socket-Welding Reducer Inserts
Frequently used ASTM Grades
| Material | Pipes | Fittings | Flanges | Valves | Bolts Nuts |
| Carbon Steel | A106 Gr A | A234 Gr WPA | A105 | A216 Gr WCB | A193 Gr B7 A194 Gr 2H |
| A106 Gr B | A234 Gr WPB | A105 | A216 Gr WCB | ||
| A106 Gr C | A234 Gr WPC | A105 | A216 Gr WCB | ||
| Carbon Steel Alloy High-Temp |
A335 Gr P1 | A234 Gr WP1 | A182 Gr F1 | A217 Gr WC1 | A193 Gr B7 A194 Gr 2H |
| A335 Gr P11 | A234 Gr WP11 | A182 Gr F11 | A217 Gr WC6 | ||
| A335 Gr P12 | A234 Gr WP12 | A182 Gr F12 | A217 Gr WC6 | ||
| A335 Gr P22 | A234 Gr WP22 | A182 Gr F22 | A217 Gr WC9 | ||
| A335 Gr P5 | A234 Gr WP5 | A182 Gr F5 | A217 Gr C5 | ||
| A335 Gr P9 | A234 Gr WP9 | A182 Gr F9 | A217 Gr C12 | ||
| Carbon Steel Alloy Low-Temp |
A333 Gr 6 | A420 Gr WPL6 | A350 Gr LF2 | A352 Gr LCB | A320 Gr L7 A194 Gr 7 |
| A333 Gr 3 | A420 Gr WPL3 | A350 Gr LF3 | A352 Gr LC3 | ||
| Austenitic Stainless Steel |
A312 Gr TP304 | A403 Gr WP304 | A182 Gr F304 | A182 Gr F304 | A193 Gr B8 A194 Gr 8 |
| A312 Gr TP316 | A403 Gr WP316 | A182 Gr F316 | A182 Gr F316 | ||
| A312 Gr TP321 | A403 Gr WP321 | A182 Gr F321 | A182 Gr F321 | ||
| A312 Gr TP347 | A403 Gr WP347 | A182 Gr F347 | A182 Gr F347 | ||
